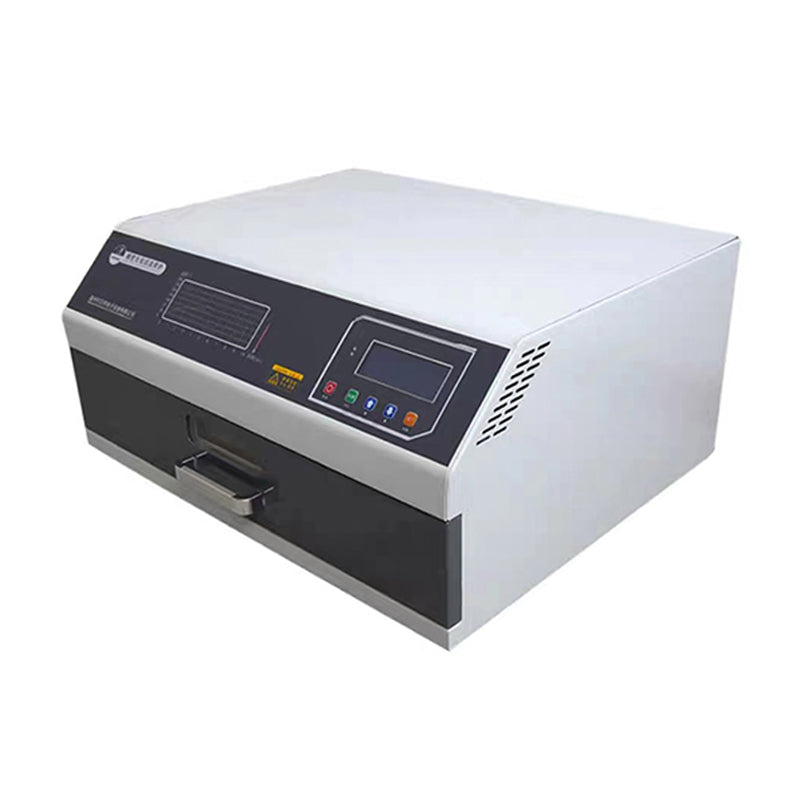

ZB5040HL lead-free reflow oven

Product features:

1. The interface of the liquid crystal display is clear (temperature, time, and curve are displayed at the same time);

2. Infrared heating tube, imported nickel-chromium heating wire, uniform heating, rapid heating, quality assurance;

3. Ceramic thermocouple, high sensitivity, accurate temperature measurement, strong stability;

4. Double-layer heat-insulating glass observation window to monitor the working conditions in the furnace in real-time.

Product parameters:

Model: ZB5040HL

Working power supply: AC220V 50~60Hz

Rated power: 3600W

Heating method: Infrared radiation heating and hot air circulation

Effective welding area: 500mm*400mm

Drawer size: 550*430*30mm

Net weight: 37.1kg

Gross weight: 40.1kg

Machine size: 675*600*312mm

The role and function of the temperature curve:

The drawer-type reflow oven is set with five temperature sections to simulate the five temperature zones of the tunnel-type reflow oven. The highest temperature points and corresponding holding times of each temperature section are designed to ensure the welding requirements of different PCB boards. The purpose and function of each temperature section are described as follows:

1. The purpose and function of the preheating section

The purpose is to heat the PCB board at room temperature, which can fully volatilize the moisture of the PCB board and eliminate the stress and some residual gas inside the PCB board.

2. The purpose and function of the heating section

The PCB board treated by the preheating section activates the flux in the tin paste during the heating section. It removes the oxides in the tin paste and on the surface of the components under the action of the flux to prepare for the welding process.

3. The purpose and function of the welding section

The main purpose of the welding section is to complete the SMT welding process. This stage is the highest temperature section in the entire reflow process; damaging components that do not meet the temperature requirements is easy. The temperature setting of this stage is generally about 30-50℃ higher than the melting point of the tin paste, and the time is generally set at about 2-5s.

4. Purpose and function of the insulation section

The function of the insulation section is to solidify the high-temperature liquid solder into a solid welding point. The solidification quality directly affects the solder's crystal structure and mechanical properties. Too fast a solidification time will cause the solder to form rough crystals and the solder joints to be uneven.

5. Purpose and function of the cooling section

Usually, it is enough to cool to a temperature that is not hot, but to speed up the operation process, it can also be directly pulled out of the drawer when it drops below 120℃ to cool down and end the process quickly.

Installation precautions:

1. The equipment should be installed where short-distance exhaust is convenient. The power supply should be equipped with a 15A high-current three-pin socket, and the grounding terminal must be reliably grounded.

2. The exhaust pipe should be made of aluminum with a diameter of 100mm. The outlet height of the exhaust pipe should be more than 1 meter higher than the machine's installation height, which is conducive to using the chimney exhaust effect of hot air.

3. The total length of the exhaust pipe shall not exceed 1.5 meters, the exhaust pipe shall not be bent more than 90 degrees, and the exhaust pipe bending radius shall be as large as possible. No exhaust fan shall be installed at the end of the exhaust pipe.

4. The mica pad in the equipment drawer cannot be removed.

5. Do not place other items on the top of the equipment, especially flammable liquids, such as "washing water, alcohol, methanol, gasoline," etc.

6. At the beginning of use, the equipment will discharge some odorous gas. This is a normal phenomenon. This odor will disappear after a period of use.

7. The power switch behind the machine should be turned off when the equipment is not in use. When the software is turned off, the machine's main control board is still working. If the machine is not used for a long time, it should be disassembled and put back into its original packaging for storage.
